Description

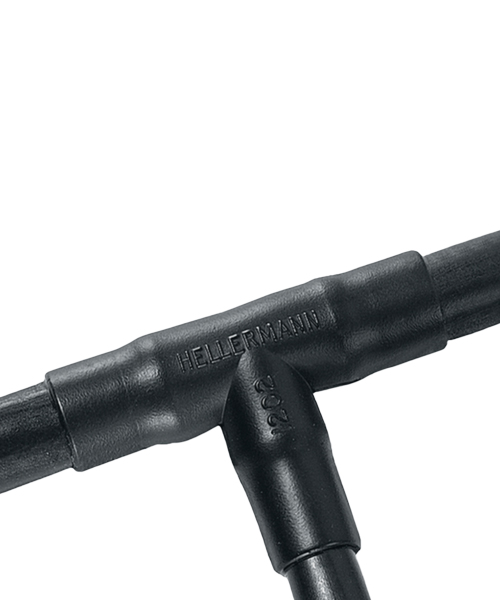

Helashrink 1200 Series is approved and accredited with VG95343 standard. Use in military, electrical and electronic harness application.
Polyolefin Cross-linked (PO-X) materials. Adhesive is optional. Operating temperature is -75°C to +150°C
Flammability: ASTM0635
Certifications & Approvals:
Product Features:
- Strain relief, sealing and mechanical protection on cable harnesses
Application:
- Heat shrinkable moulded shapes for use in electrical and electronic cable harness applications
| Type | ØH/J min. a |
ØH/J max. b |
ØK min. a |
ØK max. b |
P ± 10 % |
R ± 10 % |
HW ± 20 % |
JW ± 30 % |
KW ± 20 % |
S ± 10 % |
Designation as per VG-Norm |
Article-No. | Mil Style Article-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1206-1-G | 6.6 | 3.0 | 6.6 | 3.0 | 29.7 | 14.7 | 1.0 | 1.0 | 1.0 | 14.7 | VG95343 T08 A 009 A | 412-06180 | 412-06017 |
| 1203-1-G | 13.0 | 6.0 | 6.5 | 3.0 | 52.0 | 26.0 | 1.5 | 1.5 | 1.0 | 19.3 | VG95343 T08 A 001 A | 412-03180 | 412-03020 |
| 1202-1-G | 13.2 | 6.1 | 13.2 | 6.1 | 58.7 | 29.2 | 1.5 | 1.5 | 1.5 | 29.2 | VG95343 T08 A 010 A | 412-02180 | 412-02019 |
| 1205-1-G | 17.7 | 8.9 | 7.6 | 3.8 | 50.8 | 25.4 | 1.5 | 1.5 | 1.0 | 25.4 | – | 412-05180 | 412-05017 |
| 1201-1-G | 17.7 | 8.9 | 10.1 | 5.0 | 47.5 | 23.6 | 1.5 | 1.5 | 1.0 | 23.6 | VG95343 T08 A 007 A | 412-01180 | 412-01019 |
| 1207-1-G | 26.9 | 12.4 | 26.9 | 12.4 | 120.1 | 55.9 | 2.5 | 2.5 | 2.5 | 59.9 | VG95343 T08 A 011 A | 412-07180 | 412-07023 |
| 1209-1-G | 27.0 | 12.4 | 13.2 | 6.0 | 108.0 | 54.0 | 2.5 | 2.5 | 1.5 | 38.6 | VG95343 T08 A 002 A | 412-09180 | 412-09018 |
All dimensions in mm. Subject to technical changes.
Document:
1200 Series
