Description

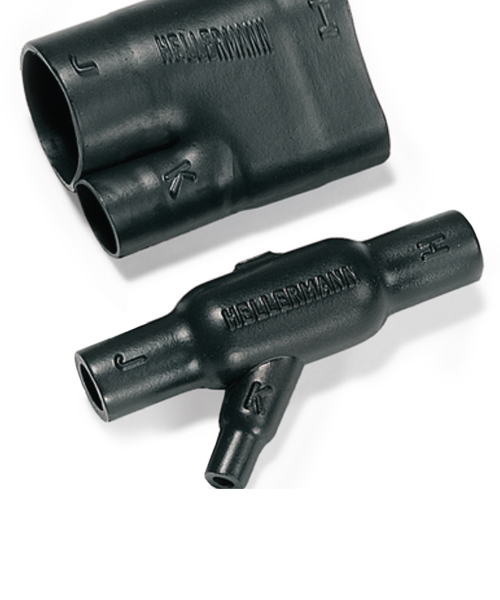

Helashrink 1300 Series is approved and accredited with VG95343 standard. Use in military, electrical and electronic harness application.
Polyolefin Cross-linked (PO-X) materials. Adhesive is optional. Operating temperature is -75°C to +150°C
Flammability: ASTM0635
Certifications & Approvals:
Product Features:
- Strain relief, sealing and mechanical protection on cable harness
- Branching part 30° & 45° Y-joint
- Mechanical tension relief for cable harnesses
Application:
- Heat shrinkable moulded shapes for use in electrical and electronic cable harness applications
| Type | ØH min. a |
ØH max. b |
ØJ min. a |
ØJ max. b |
ØK min. a |
ØK max. b |
P ± 10 % |
R ± 10 % |
HW ± 30 % |
JW ± 30 % |
KW ± 20 % |
S ± 10 % |
Angle | Designation as per VG-Norm |
Article-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1306-1-G | 13.0 | 6.0 | 6.5 | 3.0 | 6.5 | 3.0 | 45.0 | 23.0 | 1.5 | 1.0 | 1.5 | 21.5 | 45 ° | VG95343 T06 B 010 A | 413-06180, 413-06018, 413-06025 |
| 1301-1-G | 13.0 | 7.0 | 13.0 | 7.0 | 7.0 | 3.5 | 50.0 | 23.0 | 1.5 | 1.5 | 1.0 | 23.0 | 45 ° | VG95343 T08 B 001 A | 413-01180, 413-01021 |
| 1302-1-G | 27.0 | 13.0 | 27.0 | 13.0 | 7.0 | 3.5 | 93.0 | 41.0 | 2.5 | 2.5 | 1.0 | 36.0 | 45 ° | VG95343 T08 B 004 A | 413-02180, 413-02015, 413-02025 |
| 1303-1-G | 27.0 | 14.0 | 27.0 | 14.0 | 13.0 | 7.5 | 145.0 | 70.0 | 1.5 | 1.5 | 1.5 | 54.0 | 45 ° | VG95343 T08 B 002 A | 413-03180, Nil |
| 1311-1-G | 30.4 | 15.0 | 30.4 | 15.0 | 20.3 | 10.0 | 82.6 | 32.0 | 2.5 | 2.5 | 1.8 | 51.0 | 30 ° | VG95343 T08 B 003 A | 413-11180, 413-11010 |
All dimensions in mm. Subject to technical changes.
Document:
1300 Series
