Description

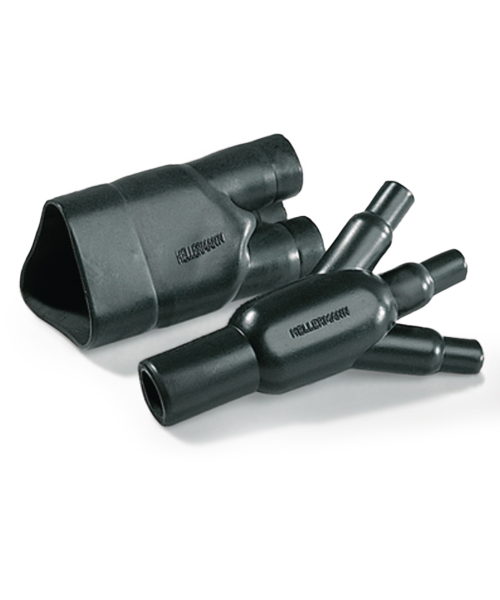

Helashrink 300 Series is approved and accredited with VG95343 standard. Use in military, electrical and electronic harness application.
Polyolefin Cross-linked (PO-X) materials. Adhesive is optional. Operating temperature is -75°C to +150°C
Flammability: ASTM0635
Certifications & Approvals:
Product Features:
- Cable strain relief and mechanical protection at harness transition points
- All outlets clearly marked to aid orientation during installation
Application:
- Heat shrinkable moulded shapes for use in electrical and electronic cable harness applications
| Type | ØH min. a |
ØH max. b |
ØJ/K/L min. a |
ØJ/K/L max. b |
P ± 10 % |
R ± 10 % |
HW ± 30 % |
W ± 20 % |
T ± 10 % |
Designation as per VG-Norm |
Article-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 306-1-G | 13.0 | 6.5 | 6.5 | 3.5 | 46.0 | 25.4 | 1.3 | 1.0 | 20.3 | VG95343 T08 D 001 A | 403-06180, 403-06022 |
| 304-1-G | 27.0 | 13.5 | 13.0 | 7.0 | 93.0 | 50.3 | 2.5 | 1.5 | 42.9 | VG95343 T08 D 002 A | 403-04180, 403-04023 |
| 310-1-G | 38.5 | 19.0 | 19.0 | 10.0 | 135.0 | 73.7 | 3.0 | 1.8 | 61.0 | VG95343 T08 D 003 A | 403-10180, 403-10023 |
| 311-1-G | 55.5 | 25.5 | 27.0 | 12.5 | 192.0 | 103.1 | 4.6 | 3.1 | 88.9 | VG95343 T08 D 004 A | 403-11180, 403-11014 |
All dimensions in mm. Subject to technical changes.
