Description

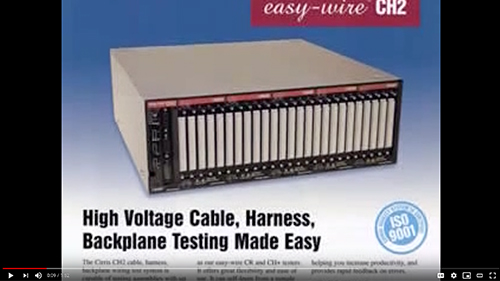

The Cirris CH2 is the most cable tester for complex assemblies. The system is controlled by the Easy-Wire® software and can be expanded up to 100,000 test points in 160-point increments. The Base Unit and each Expansion Scanner Chassis can accommodate up to five 160-point scanners (800 test points max. per chassis). The Easy-Wire® software can be installed under the Windows® operating system (versions 8.1 or 10).
| MPN | MPN Descriptions |
|---|---|
| CCH2-BU | CH2 Base Unit with Easy-Wire s/w, (holds up to 5 scanners) |
| CCH2-SC | CH2 Expansion Scanner Chassis (holds up to 5 scanners) |
| CCH2-HA | CH2 160-Point Test-Point Scanner |
| PLM-CH2 | Palm Safety Switches for CH2 |
| ADCS-C2 | CH2 Connector Saver / Quick Connect (covers 1 scanner) |
| SIO-EW | Virtual I/O Option for Easy-Wire |
| SCPT-EW | Scripting Option for CH2 |
| PCHK-C2 | CH2 Performance Check Kit |
| RPWR-PT | 12V Power Supplies, allows earth grounded points (set of 2) |
| KRM1-C2 | CH2 Rack Mount Kit for Standard 19” Electronics Cabinet |
| KRM2-C2 | CH2 Rack Mount Kit for Custom 80/20 Rack |
| PCHK-C2 | Performance Check Kit CH2 |
Product Features & Specifications:
- Process optimisation by reduction of cycle times and track occupation time
- Reduction of serial production costs
- Verifiable coverage of the relevant standards, e.g. DIN EN 50343 /EN 50155
- Reduction of the adapter cable lengths up to 70%
- Various configurations and setups from CH2 Energization Box, CH2 Advance Instructions, CH2 Adapter Panel System and CH2 XHV – 1500 VAC Test System
Document:
Cirris_CH2_Harness_Tester_Datasheet
Video:
CH2 High Voltage Electrical Cable and Harness Tester
