Description
- Made of sturdy polyester with white identification Yam.
- Self-extinguishing according to UL94-V0, FMVSS302 for enhanced fire protection
- Highly flexible
- High abrasion resistance
- High surface coverage
- High Temperature application -50oC to +150ºC and intermittent +200ºC
Certifications & Approvals:
Application:

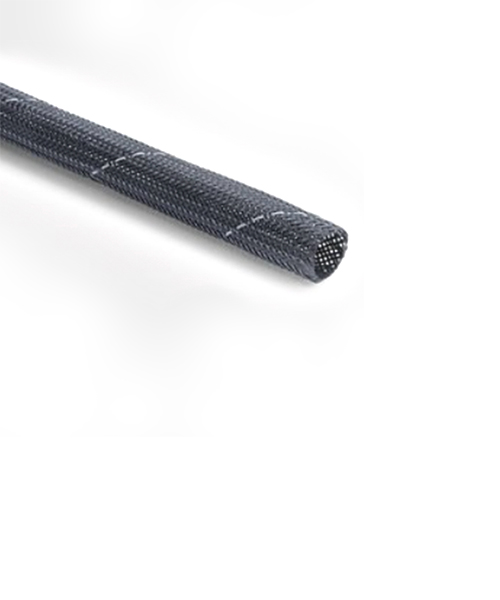

HEGPV0 braided sleeving is used wherever fire protection is important such as in railway vehicles, machine tools, robotics, and automatic equipment.
| TYPE | Bundle Ø min. | Bundle Ø max. |  Colour | Reel Length |  Tools |  Article-No. |
| HEGPV004 | 3 | 7 | Black with White Identification Yarn (BKIDWH) | 100 m | 45 | 170-30400 |
| HEGPV006 | 5 | 11 | Black with White Identification Yarn (BKIDWH) | 100 m | 45 | 170-30600 |
| HEGPV008 | 7 | 13 | Black with White Identification Yarn (BKIDWH) | 100 m | 45 | 170-30800 |
| HEGPV012 | 11 | 17 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-31200 |
| HEGPV015 | 13 | 20 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-31500 |
| HEGPV020 | 18 | 25 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-32000 |
| HEGPV030 | 27 | 40 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-33000 |
| HEGPV040 | 35 | 50 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-34000 |
| HEGPV050 | 40 | 60 | Black with White Identification Yarn (BKIDWH) | 50 m | 45 | 170-35000 |
All dimensions in mm. Subject to technical changes.
Colour grey available on request. Cuts in any lengths. Minimum Order Quantity (MOQ) may differ from package content.
Document:
HT_Catalogue_HEGPV0 Series
