Description
Our Industrial Ethernet cables use D-Code M12 or RJ45 connectors and a 2-pair construction. They meet Cat 5e applications to support data rates up to 1 Gb/s. Choose between unshielded for smallest diameter or foil/braid shielding for signal integrity in noisy environments.
Cable Specification:
PO Insulation, Teal TPE Jacket
24 AWG (7/32) Tinned Copper Conductors
Unshielded: CMR, CMG • Shielded: AWM 20626
IP67, IP68/NEMA 6P Protection • -40°C to +75°C • 300V
Bend Radius: 9x Unshielded, 11x Shielded • 5 Million Flex Life Cycles
| End 1 | End 2 | 4 Poles, Unshielded | 4 Poles, Foil + Braid |
|---|---|---|---|
| Male | Female | DR04AR117 | — |
| Male | Male | DR04AR117 | DR04DR118 |
| Female | Female | AR04AR117 | — |
| Male, 90°C | Female | DW04AR117 | — |
| Male, 90°C | Male | DW04DR117 | — |
| Male, 90°C | Male, 90°C | DW04DR117 | — |
Standard Lengths: 0.6, 1, 3, 5, 10, 15, and 20 m

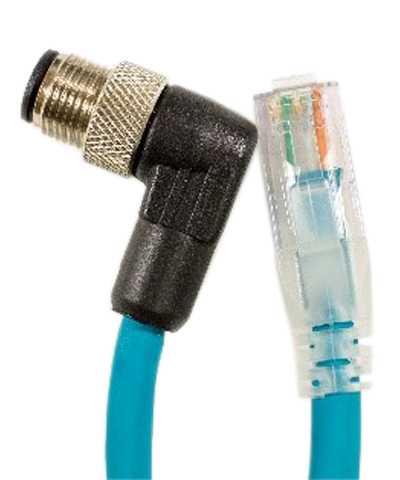

RJ45 Connectors and M12 to RJ45
PO Insulation, Teal TPE Jacket
24 AWG (7/32) Tinned Copper Conductors
Unshielded: CMR, CMG • Shielded: AWM 20626
IP67, IP68/NEMA 6P Protection • -40°C to +75°C • 300V
Bend Radius: 9x Unshielded, 11x Shielded • 5 Million Flex Life Cycles
| End 1 | End 2 | Unshielded | Foil + Braid Shield |
|---|---|---|---|
| RJ45 | RJ45 | QR04QR117 | QR04QR118 |
| M12, Male | RJ45 | DR04QR117 | DR04QR118 |
| RJ45 | M12, Female | QR04AC117 | QR04AC118 |
| M12, Male, 90°C | RJ45 | DW04QR117 | — |
Standard Lengths: 0.6, 1, 3, 5, 10, 15, and 20 m
Supported Applications:
- Industrial machine communication devices
Document:
M12 Ethernet Cordset
