Description
Cannon CA Bayonet Series was designed in accordance with the VG95234 specification. This versatile and highly reliable connector series is an improvement on the well-established MIL-C-5015 series. CA-Bayonet has a proven “reverse bayonet” coupling design that offers exceptional vibration protection, by a simple 120 deg. turn. Initially designed for aircraft and Airborn applications, these rugged connectors are used in the electrical equipment of various off-road vehicles, construction machinery, industrial devices, railroad, and military vehicles. Over 140 arrangements and 12 connector sizes available for 1 to 65 circuits. Wide selection of end bells for individual wires & jacketed cables and choice of accessories e.g. seals, gaskets, dust caps, wire hole fillers.
Product Features:
- Designed in accordance with the VG95234 specifications.
- Rugged shell design.
- Waterproof up to IP68, (10 meters / 35 feet or 1 bar for 16 h) and IP69k (water jet).
- Environmental protection.
- Bayonet coupling for easy mating and un-mating.
- Vibration proof.
| APPLICATION / MARKET: | Defense, Industrial, Transportation |
| INDUSTRY / MIL-SPEC #: | VG95234 |
| SHAPE: | Circular |
| SHELL STYLE: | Wall Mount Receptacle, Cable Connecting Receptacle, Shielded Receptacle, Box Mount Receptacle, Straight Plug shielded VG & banding style, Jam Nut Receptacle, 90° Angle Plug, Thru-bulkhead Receptacle |
| DURABILITY: | 500 Mating Cycles |
| POWER & SIGNAL IN SAME LAYOUT: | Yes |
| CONTACT STYLE / TERMINATION: | Crimp, Solder, PCB |
How to order
Cannon Order reference
Explanation
Series
CA – Circular connectors with bayonet coupling
Shell style
3100 – Wall mounting receptacle
3101 – Cable connecting receptacle
3102 – Box mounting receptacle
3105 – Dummy receptacle for front and panel mounting
3106 – Plug, straight
3108 – Plug, 90°
TBF – Bulkhead receptacle
Class
E – environmental with resilient insulators and endbell with clamp and bushing
F – environmental with resilient insulator and endbell for flex tube
R – environmental with resilient insulator and shortened light-weight end bell without cable clamp
Shell size
10SL, 12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32 and 36
Contact arrangment
See pages 13 to 26
Contact type
P – Pin
S – Socket
PS – one side pin, one side socket (only for TBF)
Document:
CA-Bayonet Brochure
CA-Bayonet Catalogue
How to order?
Video:

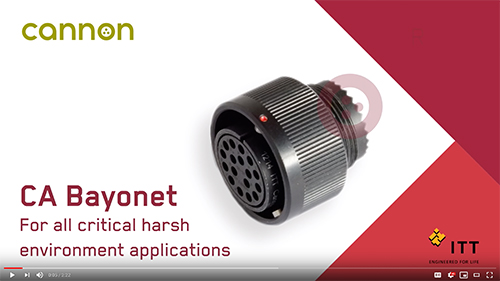

CA Bayonet
