Description

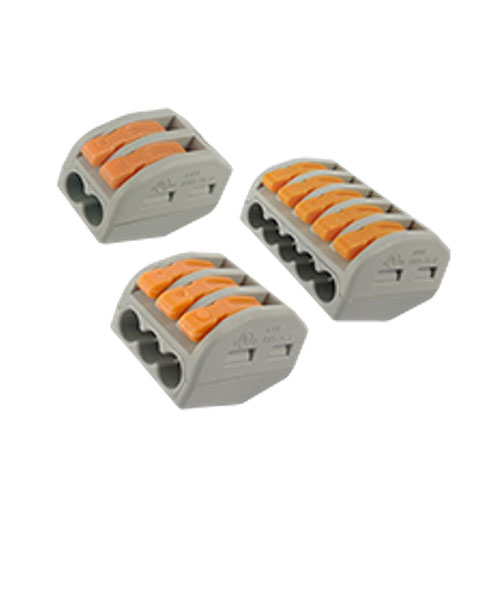

N2 Pluggable Terminal Blocks feature suitable for both solid and stranded wire connection. These splicing wire connectors work with all conductor types with sizes ranging from 0.2 mm2 to 4 mm2 (24 AWG to 2 AWG). Two, three, or up to five wires can be connected at the same time. The 4.6 mm-pitch connectors have up to a 32A rated current and a 600V rated voltage. Comply to UL 486C standard. -40°C to +85°C operating temperature range.
Designed for lighting applications, including box wiring, lighting wiring, electric clothes hanger, etc.
Technical Data:
| Rated voltage: | 600V |
| Rated current: | 32A |
| Wire range: | 24-12AWG |
| Wire strip length: | 8-10mm |
| Operating temperature: | -40℃ to 85℃ |
| Brand | MPN | Descriptions |
|---|---|---|
| Amphenol Anytek | N20200800000G | N2 2 POS SPLICING WIRE CONNECTOR |
| Amphenol Anytek | N20300800000G | N2 3 POS SPLICING WIRE CONNECTOR |
| Amphenol Anytek | N20500800000G | N2 5 POS SPLICING WIRE CONNECTOR |
Document:
N2-2 poles
N2-3 poles
N2-5 poles
