Description
- High-quality self-laminating labels
- Suitable for marking of wires and cables
- The laminating function gives excellent protection against humidity and mechanical abrasion
- Rounded edge design gives additional bonding strength
Certifications & Approvals:
Application:

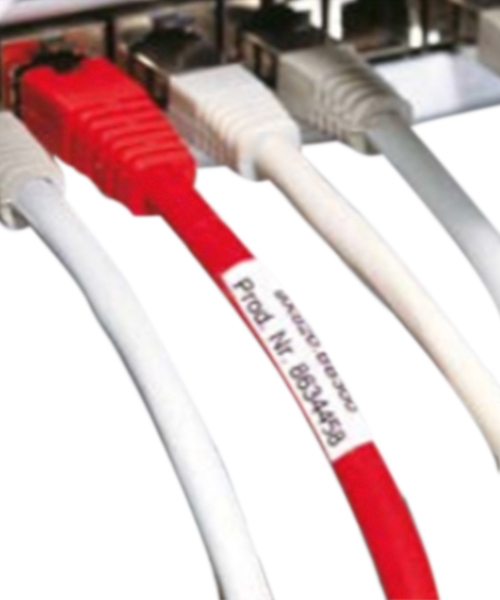

These labels are ideal for identifying cables and wires. They consist of a printable area plus a lamination function for the protection of print text against humidity, dirt, debris, and mechanical abrasion. Due to their flexibility, these labels are also suitable for flat ribbon cables.
| Â
TYPE |
Bundle Ø
min. |
Bundle Ø
max. |
Â
Width (W) |
Â
Height (H) |
Â
Height (H2) |
Width of Liner (WL) | Â
Labels per Row |
Â
Pack Cont. |
Â
 Colour |
Â
 Article-No. |
| TAG51TD3-1209-WHCL | 1.4 | 3.0 | 25.4 | 8.8 | 19.1 | 85.0 | 3 pcs. | 5,000
pcs. |
White (WH), Transparent (CL) | 596-12091 |
| TAG26TD6-1209-WHCL | 1.5 | 3.0 | 12.7 | 9.5 | 19.1 | 85.0 | 6 pcs. | 10,000
pcs. |
White (WH), Transparent (CL) | 596-12096 |
| TAG36TD7-1209-WHCL | 2.0 | 4.7 | 12.7 | 9.0 | 23.8 | 95.0 | 7 pcs. | 10,000
pcs. |
White (WH), Transparent (CL) | 596-12097 |
| TAG2TD6-1209-WHCL | 3.5 | 7.6 | 12.7 | 12.7 | 36.5 | 82.0 | 6 pcs. | 5,000
pcs. |
White (WH), Transparent (CL) | 596-61209 |
| TAG22TD3-1209-WHCL | 3.5 | 7.6 | 25.4 | 12.7 | 36.5 | 82.0 | 3 pcs. | 2,500
pcs. |
White (WH), Transparent (CL) | 596-32091 |
| TAG24TD1-1209-WHCL | 3.5 | 7.6 | 50.8 | 12.7 | 36.5 | 55.0 | 1 pc. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-12094 |
| TAG23TD5-1209-WHCL | 4.5 | 10.0 | 19.1 | 12.7 | 44.5 | 101.6 | 5 pcs. | 5,000
pcs. |
White (WH), Transparent (CL) | 596-12095 |
| TAG25TD3-1209-WHCL | 4.5 | 10.0 | 25.4 | 12.7 | 44.5 | 82.0 | 3 pcs. | 2,500
pcs. |
White (WH), Transparent (CL) | 596-51209 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content. Other packaging options may also be available. More colours on request.
| Â
TYPE |
Bundle Ø
min. |
Bundle Ø
max. |
Â
Width (W) |
Â
Height (H) |
Â
Height (H2) |
Width of Liner (WL) | Â
Labels per Row |
Â
Pack Cont. |
Â
 Colour |
Â
 Article-No. |
| TAG9TD3-1209-WHCL | 5.5 | 12.1 | 25.4 | 19.1 | 57.1 | 82.0 | 3 pcs. | 2,500
pcs. |
White (WH), Transparent (CL) | 596-91209 |
| TAG10TD2-1209-WHCL | 5.5 | 12.1 | 49.5 | 19.1 | 57.1 | 101.6 | 2 pcs. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-12090 |
| TAG91TD1-1209-WHCL | 8.0 | 16.0 | 70.0 | 35.0 | 85.0 | 74.0 | 1 pc. | 500
pcs. |
White (WH), Transparent (CL) | 596-41209 |
| TAG1TD2-1209-WHCL | 8.5 | 18.2 | 48.2 | 19.1 | 79.2 | 101.6 | 2 pcs. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-21209 |
| TAG3TD3-1209-WHCL | 10.0 | 22.2 | 25.4 | 25.4 | 95.3 | 82.0 | 3 pcs. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-31209 |
| TAG6TD1-1209-WHCL | 10.0 | 22.2 | 50.8 | 25.4 | 95.3 | 55.0 | 1 pc. | 500
pcs. |
White (WH), Transparent (CL) | 596-11209 |
| TAG107TD3-1209-WHCL | 12.0 | 37.5 | 25.4 | 31.8 | 149.9 | 82.0 | 3 pcs. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-01209 |
| TAG38TD3-1209-WHCL | 20.8 | 47.5 | 25.4 | 38.1 | 187.2 | 82.0 | 3 pcs. | 1,000
pcs. |
White (WH), Transparent (CL) | 596-12098 |
| TAG07TD1-1209-WHCL | 20.8 | 47.5 | 50.8 | 25.4 | 187.2 | 55.0 | 1 pc. | 250
pcs. |
White (WH), Transparent (CL) | 596-71209 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content. Other packaging options may also be available. More colours on request.
Document:
HT_Cat_(1209 Series)
