Description
- Slide Slit and optional center slits for easy wire insertion
- Smooth surface for clean and legible printing
- Supplied on a ladder-style carrier so that markers can be kitted after printing
- A 3:1 shrink ratio means fewer skews as each marker covers a wider range of wire diameters
Certifications & Approvals:
Application:

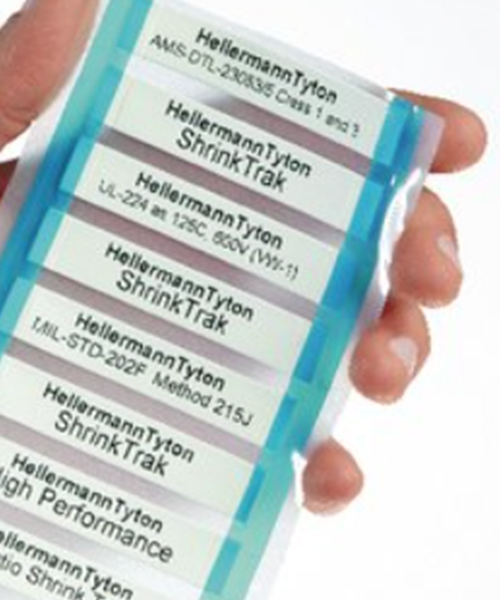

Shrinkable markers by thermal transfer. Ideal for applications where dialing cannot take up space or run on the cable. HellermannTyton ShrinkTrak Markers make it easy to identify wires, cables, and other components. These markers are made with cuts in the side, which make them easy to apply to the cables. All ShrinkTrak labels are homologated for military use (American Standard).
| TYPE | Supplied Ø D min. | Recov. Ø d max. | Length (L) | Height (H) | Wall (WT) | Pack Cont. | Colour | Article-No. |
| HST3-1BK | 3.0 | 1.1 | 48.0 | 5.97 | 0.53 | 250 pcs. | Black (BK) | 553-50001 |
| HST3-1WH | 3.0 | 1.1 | 48.0 | 5.97 | 0.53 | 250 pcs. | White (WH) | 553-50002 |
| HST3-1YE | 3.0 | 1.1 | 48.0 | 5.97 | 0.53 | 250 pcs. | Yellow (YE) | 553-50005 |
| HST4.8-1.6BK | 4.5 | 1.6 | 48.0 | 7.92 | 0.53 | 250 pcs. | Black (BK) | 553-50008 |
| HST4.8-1.6WH | 4.5 | 1.6 | 48.0 | 7.92 | 0.53 | 250 pcs. | White (WH) | 553-50009 |
| HST4.8-1.6YE | 4.5 | 1.6 | 48.0 | 7.92 | 0.53 | 250 pcs. | Yellow (YE) | 553-50012 |
| HST6-2BK | 6.0 | 2.2 | 48.0 | 10.67 | 0.71 | 250 pcs. | Black (BK) | 553-50015 |
| HST6-2WH | 6.0 | 2.2 | 48.0 | 10.67 | 0.71 | 250 pcs. | White (WH) | 553-50016 |
| HST6-2YE | 6.0 | 2.2 | 48.0 | 10.67 | 0.71 | 250 pcs. | Yellow (YE) | 553-50020 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
| TYPE | Supplied Ø D min. | Recov. Ø d max. | Length (L) | Height (H) | Wall (WT) | Pack Cont. | Colour | Article-No. |
| HST9-3BK | 9.0 | 3.1 | 48.0 | 15.16 | 0.79 | 250 pcs. | Black (BK) | 553-50023 |
| HST9-3WH | 9.0 | 3.1 | 48.0 | 15.16 | 0.79 | 250 pcs. | White (WH) | 553-50024 |
| HST9-3YE | 9.0 | 3.1 | 48.0 | 15.16 | 0.79 | 250 pcs. | Yellow (YE) | 553-50026 |
| HST12-4BK | 11.9 | 4.2 | 48.0 | 19.55 | 0.84 | 250 pcs. | Black (BK) | 553-50028 |
| HST12-4WH | 11.9 | 4.2 | 48.0 | 19.55 | 0.84 | 250 pcs. | White (WH) | 553-50029 |
| HST12-4YE | 11.9 | 4.2 | 48.0 | 19.55 | 0.84 | 250 pcs. | Yellow (YE) | 553-50031 |
| HST18-6BK | 18.6 | 6.35 | 48.0 | 30.48 | 0.91 | 250 pcs. | Black (BK) | 553-50033 |
| HST18-6WH | 18.6 | 6.35 | 48.0 | 30.48 | 0.91 | 250 pcs. | White (WH) | 553-50034 |
| HST18-6BK | 18.6 | 6.35 | 48.0 | 30.48 | 0.91 | 250 pcs. | Yellow (YE) | 553-50036 |
| HST24-8BK | 26.0 | 8.4 | 48.0 | 42.93 | 0.99 | 250 pcs. | Black (BK) | 553-50038 |
| HST24-8WH | 26.0 | 8.4 | 48.0 | 42.93 | 0.99 | 250 pcs. | White (WH) | 553-50039 |
| HST24-8YE | 26.0 | 8.4 | 48.0 | 42.93 | 0.99 | 250 pcs. | Yellow (YE) | 553-50041 |
| HST39-13WH | 38.1 | 13.0 | 48.0 | 57.40 | 1.01 | 150 pcs. | White (WH) | 553-50209 |
| HST39-13YE | 38.1 | 13.0 | 48.0 | 57.40 | 1.01 | 150 pcs. | Yellow (YE) | 553-50225 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
Document:
HT_Cat_HST
