Description
It is designed to meet the demand for the high-density connection of internal wires to PC boards. It is compact, highly reliable and low in cost.
Product Features / Specifications:
Product Profile
|
Series Name
|
PH CONNECTOR |
|
Category
|
Wire to Board Crimp style Connectors |
|
Product type
|
Crimp style, Thin type Disconnectable type |
|
Terminal Type
|

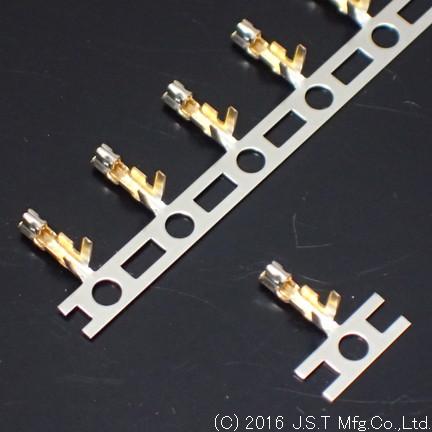

Female, Receptacle (Socket)
|
| Pitch | 2mm |
| Rated current | 2A (AWG#24) |
| Rated voltage | 100V |
| Mounting direction | Top entry, Side entry |
Document:
Please request from us at sales@meds-int.com
