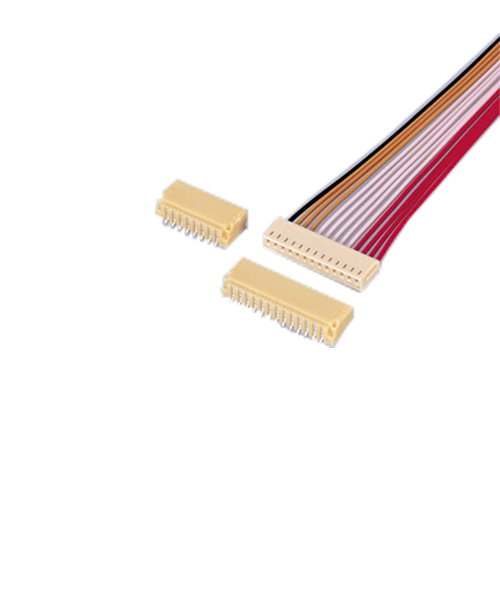

Description
- Compact design
- Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely affect vacuum gripping equipment
- Twin U-slot ID section
- The same shrouded header can be used for the SH crimp style connector.
Product Features / Specifications:
Product Profile
| Series | SR/SZ connector |
| Category | Insulation Displacement Connectors (Wire-to-Board type) |
| Type | IDC style, Compact type Disconnectable type |
Specifications
| Pitch | 1.0 mm |
| Current rating | 0.7A |
| Voltage rating | 50V |
| PC board mounting direction | Top entry, side entry |
Document:
Please request from us at sales.marketing@meds-int.com
