Description

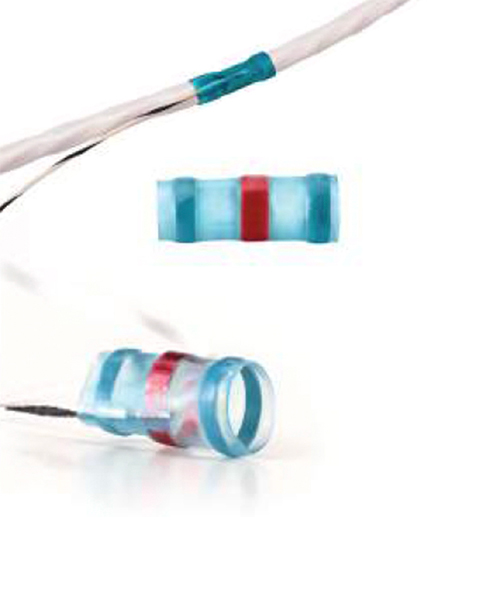

Sumitomo STS solder termination sleeves provide the most reliable means of terminating a wide variety of coaxial cable types. In addition, they can be used for wire-to-wire or wire-to-pin style connections and even on triaxial cable assemblies. It solders, seals, insulates, and strains relieve critical connections in one simple step. STS devices are available for low and high-temperature cables ad come in a range of sizes, with or without preinstalled wires or braided conductors.
STS products have a long history of use in a variety of areas ranging from commercial aircraft and military aerospace & defence to high-volume commercial applications.
Built to stringent standards including SAE-AS83519 and NAS 1744, 1745 & 1746. Comply to AS83519/1 & AS83519/2 industry specifications, and selected model also MIL MS83519 QBL listed product. High operating temperature 125°C to 175°C.
Cable Specification:
150°C Operating Temperature STS
| Size | Cable OD Range | No Pre-installed Wire | |
|---|---|---|---|
| Inches | Manufacturer MPN | AS (MIL) | |
| 1 | 0.20-0.105 | H-M-1 | M83519/1-1 |
| 2 | 0.30-0.145 | H-M-2 | M83519/1-2 |
| 3 | 0.50-0.200 | H-M-3 | M83519/1-3 |
| 4 | 0.70-0.255 | H-M-4 | M83519/1-4 |
| 5 | 0.100-0.300 | H-M-5 | M83519/1-5 |
175°C High Operating Temperature STS – RoHS
| Size | Cable OD Range | No Pre-installed Wire | |
|---|---|---|---|
| Inches | Manufacturer MPN | ||
| 1 | 0.20-0.105 | H-HC-1 | |
| 2 | 0.30-0.145 | H-HC-2 | |
| 3 | 0.50-0.200 | H-HC-3 | |
| 4 | 0.70-0.255 | H-HC-4 | |
| 5 | 0.100-0.300 | H-HC-5 | |
Typical STS Construction Details:
Installation Instructions:
Document:
Sumitomo-STS-Solder-Sleeves
STS-Product-Identification_20-1216A
SAE-AS83519-1
SAE-AS83519-2
