Description
- Excellent electromagnetic protection
- Extremely flexible, expandable, and easy to apply
- No kinks or ruptures even when bent at sharp angles
- Superior abrasion protection
- Particularly suitable for applications with restricted space or requiring movement
- The inner disposable tube protects the sleeve from deformation and allows for easy insertion of cables
- Fulfills the requirements of IEC CISPR25 for radio disturbances in vehicles, boats, and engines
Certifications & Approvals:
Application:

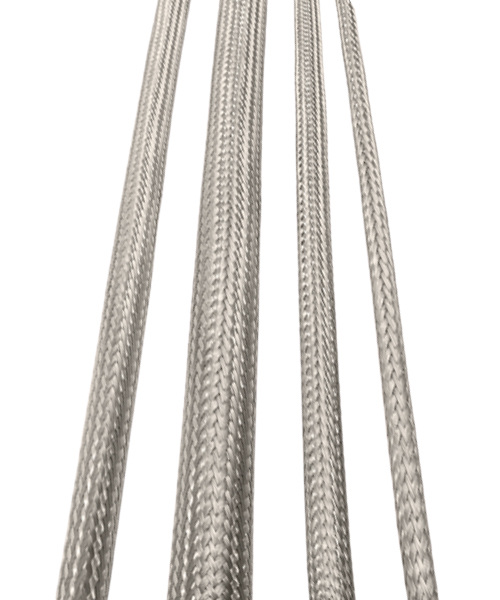

HEGEMIP braided sleeving is used for highly sensitive electronics, such as in semi-con machines, military equipment, rail, and automobiles.
| TYPE | Ø (D) | Bundle Ø min. | Bundle Ø max. | Colour | Weight | Reel Length | Article-No. |
| HEGEMIP-VG03 | 3 | 3.5 | 5.0 | Metal (ML) | 18.5 g/m | 500 m | 173-00200 |
| HEGEMIP-VG04 | 4 | 4.5 | 7.0 | Metal (ML) | 30.0 g/m | 500 m | 173-00201 |
| HEGEMIP-VG06 | 6 | 5.5 | 8.5 | Metal (ML) | 36.5 g/m | 500 m | 173-00202 |
| HEGEMIP-VG07,5 | 7.5 | 7.5 | 13.5 | Metal (ML) | 71.0 g/m | 500 m | 173-00203 |
| HEGEMIP-VG10 | 10 | 13.0 | 17.5 | Metal (ML) | 95.5 g/m | 250 m | 173-00204 |
| HEGEMIP-VG12,5 | 12.5 | 15.0 | 19.5 | Metal (ML) | 100.0 g/m | 200 m | 173-00205 |
| HEGEMIP-VG20 | 20 | 19.0 | 30.0 | Metal (ML) | 264.5 g/m | 100 m | 173-00206 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
Document:
HT_Catalogue_HEGEMIPVG Series
