Description
- Shrink ratio 3:1
- 50 mm, 25 mm and 16 mm pre-cut marker options as standard, other lengths available on request
- Available in white or yellow
- Good mechanical strength and resistance to organic solvents and chemicals
- Highly flexible
- Delivery in convenient storage boxes
Certifications & Approvals:
Application:

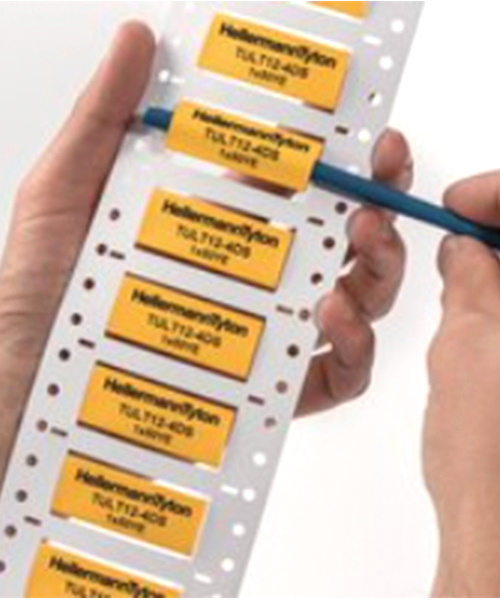

TULT DS is a UL recognized 3:1 heat shrink marker material pre-cut and formatted into a convenient “ladder” system. This pre-cut format not only allows printing on both sides of the marker, but the user can also easily choose and pick each required marker. TULT’s polyolefin compound has good mechanical strength and resistance to organic solvents and chemicals. The surface of the tubing has been specially prepared so that print performance is always excellent using HellermannTyton’s printer range.
| TYPE | Supplied Ø D min. | Recov. Ø d max. | Length (L) | Wall (WT) | Pack Cont. |
Colour |
Article-No. |
| TULT2.4-0.8DS-2x25WH | 2.4 | 0.8 | 25.0 | 0.73 | 2,000 pcs. | White (WH) | 553-71002 |
| TULT2.4-0.8DS-2x25YE | 2.4 | 0.8 | 25.0 | 0.73 | 2,000 pcs. | Yellow (YE) | 553-71003 |
| TULT2.4-0.8DS-1x50WH | 2.4 | 0.8 | 50.0 | 0.73 | 1,000 pcs. | White (WH) | 553-71000 |
| TULT2.4-0.8DS-1x50YE | 2.4 | 0.8 | 50.0 | 0.73 | 1,000 pcs. | Yellow (YE) | 553-71001 |
| TULT3-1DS-2x25WH | 3.0 | 1.0 | 25.0 | 0.60 | 2,000 pcs. | White (WH) | 553-71008 |
| TULT3-1DS-2x25YE | 3.0 | 1.0 | 25.0 | 0.60 | 2,000 pcs. | Yellow (YE) | 553-71009 |
| TULT3-1DS-1x50WH | 3.0 | 1.0 | 50.0 | 0.60 | 1,000 pcs. | White (WH) | 553-71006 |
| TULT3-1DS-1x50YE | 3.0 | 1.0 | 50.0 | 0.60 | 1,000 pcs. | Yellow (YE) | 553-71007 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
| TYPE | Supplied Ø D min. | Recov. Ø d max. | Length (L) | Wall (WT) | Pack Cont. |
Colour |
Article-No. |
| TULT4.8-1.6DS-2x25WH | 4.8 | 1.6 | 25.0 | 0.66 | 2,000 pcs. | White (WH) | 553-71014 |
| TULT4.8-1.6DS-2x25YE | 4.8 | 1.6 | 25.0 | 0.66 | 2,000 pcs. | Yellow (YE) | 553-71015 |
| TULT4.8-1.6DS-1x50WH | 4.8 | 1.6 | 50.0 | 0.66 | 1,000 pcs. | White (WH) | 553-71012 |
| TULT4.8-1.6DS-1x50YE | 4.8 | 1.6 | 50.0 | 0.66 | 1,000 pcs. | Yellow (YE) | 553-71013 |
| TULT6-2DS-2x25WH | 6.0 | 2.0 | 25.0 | 0.69 | 2,000 pcs. | White (WH) | 553-71020 |
| TULT6-2DS-2x25YE | 6.0 | 2.0 | 25.0 | 0.69 | 2,000 pcs. | Yellow (YE) | 553-71021 |
| TULT6-2DS-1x50WH | 6.0 | 2.0 | 50.0 | 0.69 | 1,000 pcs. | White (WH) | 553-71018 |
| TULT6-2DS-1x50YE | 6.0 | 2.0 | 50.0 | 0.69 | 1,000 pcs. | Yellow (YE) | 553-71019 |
| TULT9-3DS-2x25WH | 9.0 | 3.0 | 25.0 | 0.79 | 1,000 pcs. | White (WH) | 553-71026 |
| TULT9-3DS-2x25YE | 9.0 | 3.0 | 25.0 | 0.79 | 1,000 pcs. | Yellow (YE) | 553-71027 |
| TULT9-3DS-1x50WH | 9.0 | 3.0 | 50.0 | 0.79 | 500 pcs. | White (WH) | 553-71024 |
| TULT9-3DS-1x50YE | 9.0 | 3.0 | 50.0 | 0.79 | 500 pcs. | Yellow (YE) | 553-71025 |
| TULT12-4DS-2x25WH | 12.0 | 4.0 | 25.0 | 0.84 | 1,000 pcs. | White (WH) | 553-71032 |
| TULT12-4DS-2x25YE | 12.0 | 4.0 | 25.0 | 0.84 | 1,000 pcs. | Yellow (YE) | 553-71033 |
| TULT12-4DS-1x50WH | 12.0 | 4.0 | 50.0 | 0.84 | 500 pcs. | White (WH) | 553-71030 |
| TULT12-4DS-1x50YE | 12.0 | 4.0 | 50.0 | 0.84 | 500 pcs. | Yellow (YE) | 553-71031 |
| TULT18-6DS-2x25WH | 18.0 | 6.0 | 25.0 | 1.00 | 1,000 pcs. | White (WH) | 553-71038 |
| TULT18-6DS-2x25YE | 18.0 | 6.0 | 25.0 | 1.00 | 1,000 pcs. | Yellow (YE) | 553-71039 |
| TULT18-6DS-1x50WH | 18.0 | 6.0 | 50.0 | 1.00 | 500 pcs. | White (WH) | 553-71036 |
| TULT18-6DS-1x50YE | 18.0 | 6.0 | 50.0 | 1.00 | 500 pcs. | Yellow (YE) | 553-71037 |
| TULT24-8DS-2x25WH | 24.0 | 8.0 | 25.0 | 1.20 | 500 pcs. | White (WH) | 553-71044 |
| TULT24-8DS-2x25YE | 24.0 | 8.0 | 25.0 | 1.20 | 500 pcs. | Yellow (YE) | 553-71045 |
| TULT24-8DS-1x50WH | 24.0 | 8.0 | 50.0 | 1.20 | 250 pcs. | White (WH) | 553-71042 |
| TULT24-8DS-1x50YE | 24.0 | 8.0 | 50.0 | 1.20 | 250 pcs. | Yellow (YE) | 553-71043 |
| TULT39-13DS-2x25WH | 39.0 | 13.0 | 25.0 | 1.25 | 500 pcs. | White (WH) | 553-71050 |
| TULT39-13DS-2x25YE | 39.0 | 13.0 | 25.0 | 1.25 | 500 pcs. | Yellow (YE) | 553-71051 |
| TULT39-13DS-1x50WH | 39.0 | 13.0 | 50.0 | 1.25 | 250 pcs. | White (WH) | 553-71048 |
| TULT39-13DS-1x50YE | 39.0 | 13.0 | 50.0 | 1.25 | 250 pcs. | Yellow (YE) | 553-71049 |
All dimensions in mm. Subject to technical changes.
Minimum Order Quantity (MOQ) may differ from package content.
Document:
HT_Cat_TULT Series
